SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Certification: CE

Applicable Industries: Hotels, Farms, Home Use, Retail, full automatic toilet paper machine

Condition: New

Product Type: Toilet Tissue

Place of Origin: Henan, China

Brand Name: henan

Voltage: 380V 50HZ

Power: 7.5 kw

Dimension(L*W*H): 6000*2100*1800mm

Weight: 2500 kg

Warranty: 1 Year

Production Capacity: 180-230 m/min

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2021

Warranty of core components: 1 Year

Core Components: PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox

Name: Toilet Tissue Paper Machine

Finished Products: Toilet paper,tissue rolls,kitchen tower,hand tower

Back stand: Two or three layers synchronous transmission

Parameter setting: PLC computer operating system interface

Embossing rolls: Steel roller to woolen roller,steel to rubber roller, steel to steel

Machine speed: 180-250 m/min

Machine capacity: 2-5 tons per day

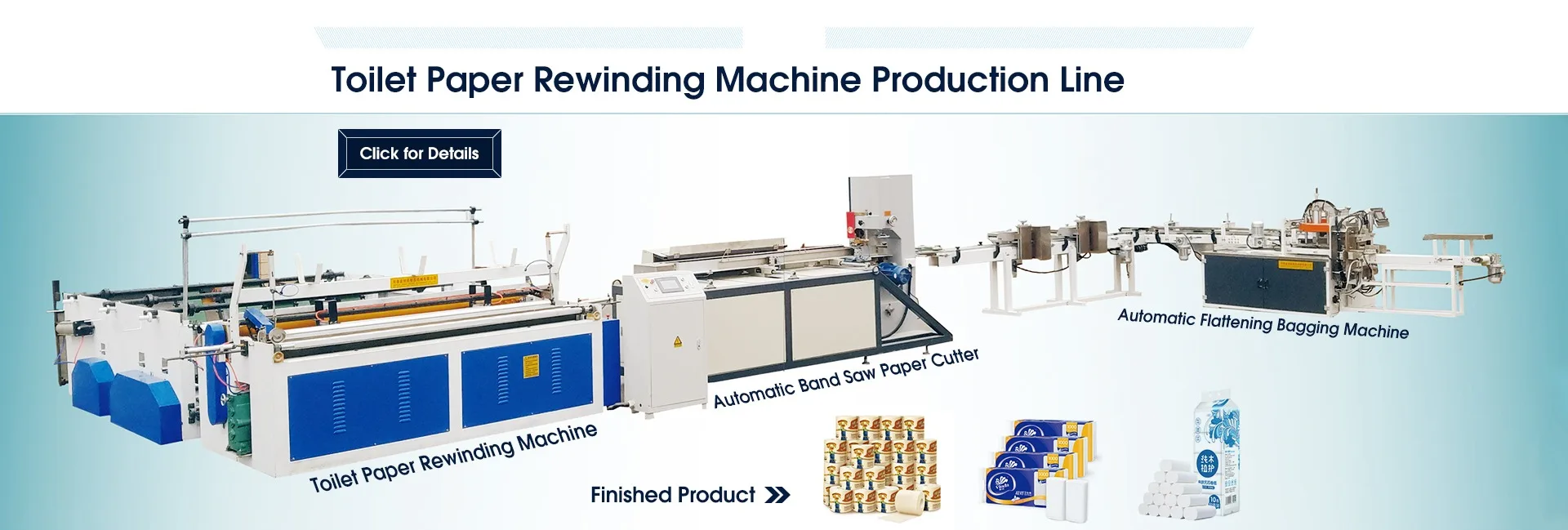

Production line: Toilet paper cutting and packing machine

After-sale service: One year warranty, engineers are available

PLEASE NOTE:

1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!

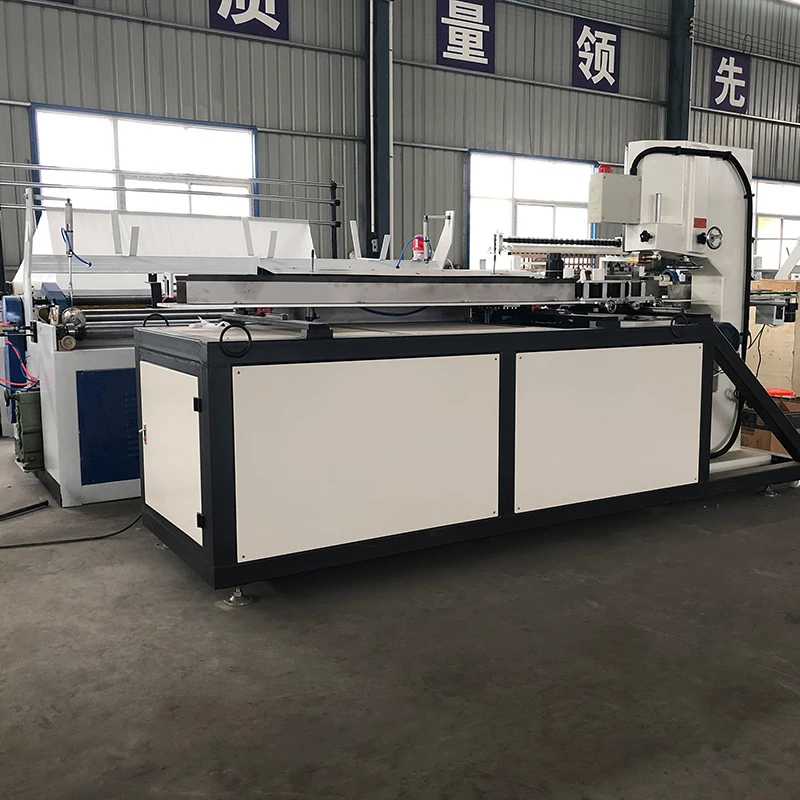

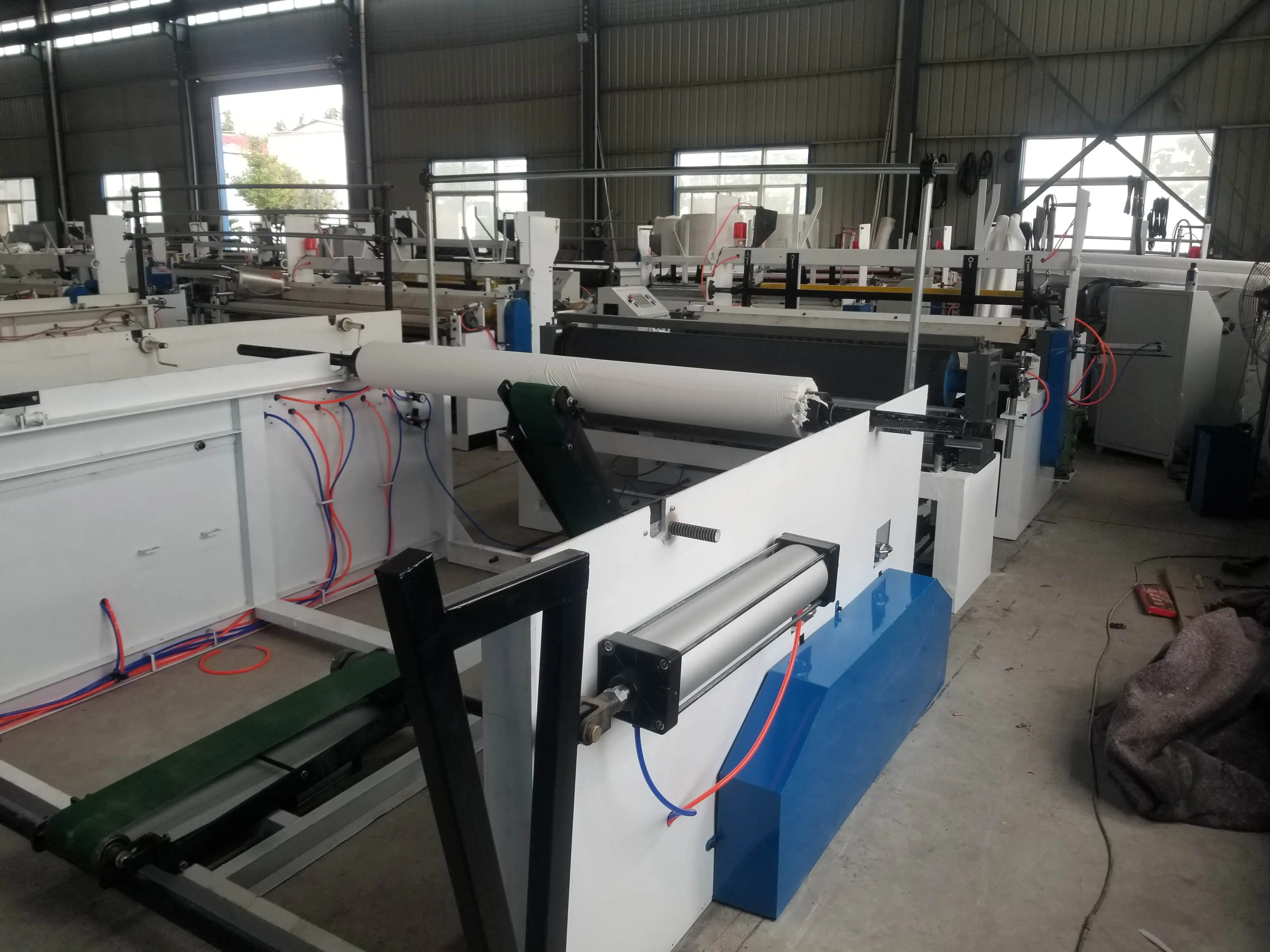

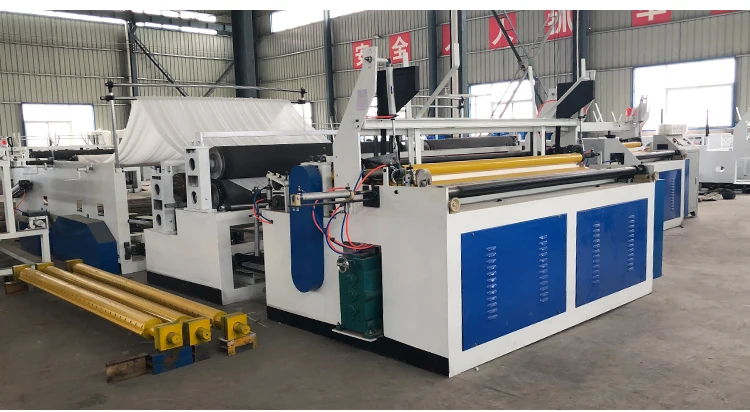

New design small machines for home business excellent quality toilet tissue paper rewinding making machine

This machine adopts international new PLC computer programming technology (system can be upgraded), frequency control, automatic electronic brake. The touch-type human-machine interface operating system uses a coreless rewind forming system. application the PLC program wind column forming technology achieves the characteristics of faster rewinding and more beautiful molding.

Machine Model	1575/1880/2100/2400/2800/3000
Paper Width	1575mm/1880mm/2100mm/2400mm/3000mm
Control System	PLC Control,Variable Frequency Speed Control,Touch Screen Operation
Product Range	Core Paper,Non Core Roll Paper
Drop Tube	Manual,Automatic(Optional)
Production Speed	150-280m/min
Spray,Cutting and Rewinding	Automtic
Finished product launch	Automtic
Embossing	Single Embossing/Double Embossing
Blank Holder	Airbag Control,Cylinder Control,Steel to Steel Structure
Outline Dimension	6200mm-7500mm*2600mm-3200mm*1750mm
Paper Backing	1-4layer,general chain feed or continuously variable transmission feed paper

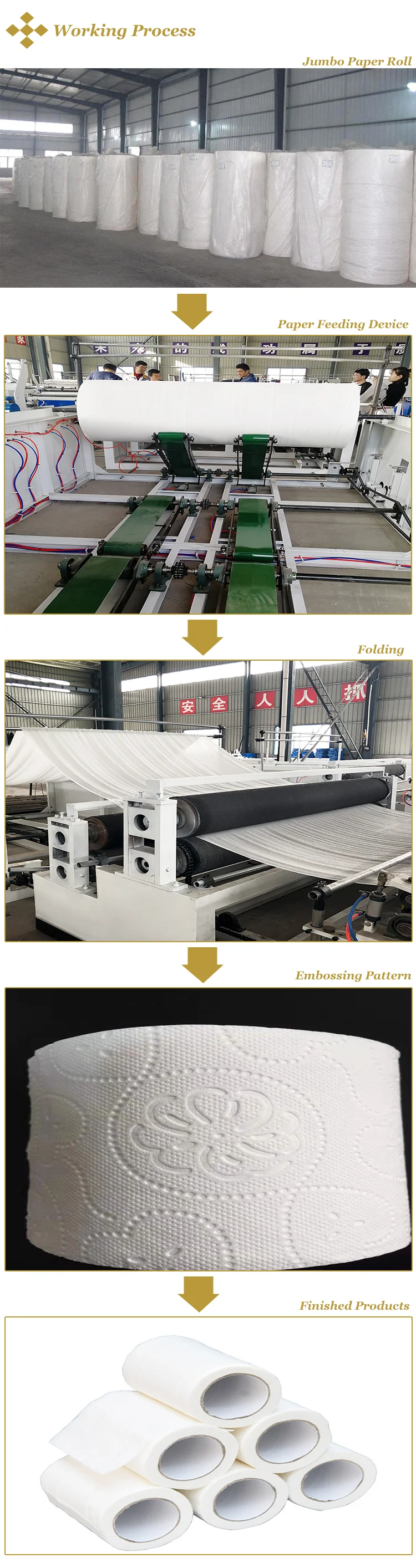

Working Principle

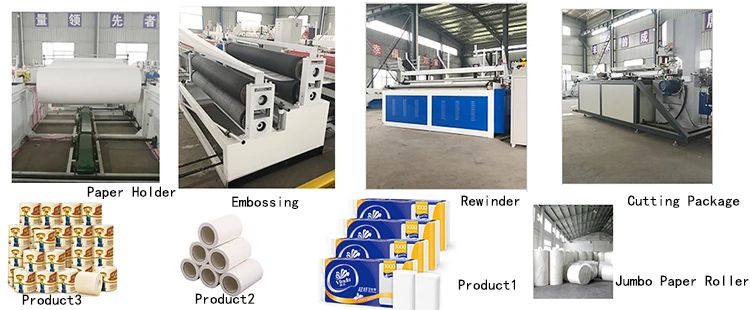

Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.
1. Rewinding—The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper—The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length
required by the customer.
3. Packaging—Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.

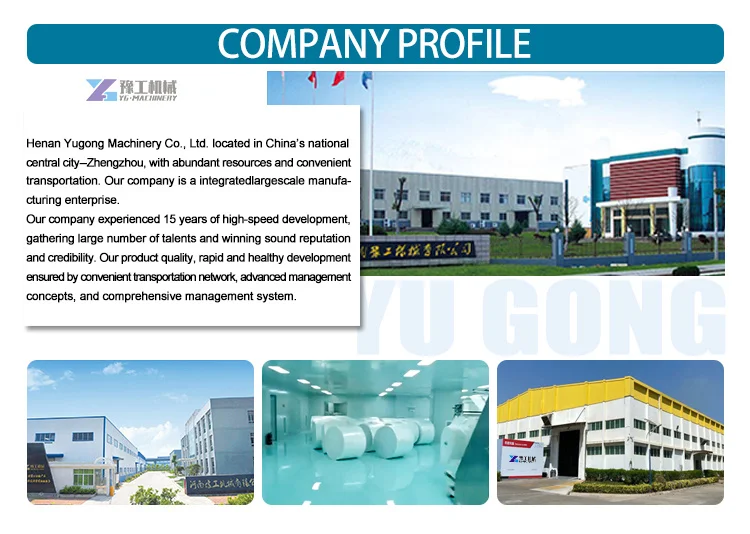

Company Information

FAQ

1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it’s not free.
You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
