SPECIFICATIONS

After-sales Service Provided: Engineers available to service machinery overseas

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works

Automatic: Yes

Block Type: block, brick, paver and curbstone

Brand Name: NoEnName_Null

Brick Raw Material: CONCRETE

Brick size: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm

Certification: CE,CE/ISO9001

Color: Optional

Condition: New

Core Components: PLC

Dimension(L*W*H): 3000x160x2500mm

Hign-concerned Chemical: None

Key Selling Points: Easy to Operate

Machinery Test Report: Provided

Marketing Type: New Product 2022

Material: Sand Flyash Cement Stone

Method: Hydraulic pressure

Mould: Heat Treatment

Origin: Mainland China

Pallet size: 850*550*30mm

Processing: Brick Production Line

Production Capacity (Pieces/8 hours): 5760 pcs/8hours

Type: Hollow Block Making Machine

Vibration frequency: 4000-4800R/MIN

Video outgoing-inspection: Provided

Voltage: 220V/380V/440V

Warranty: 1 Year

Warranty of core components: 1.5 years

Weight: 5000kgs

Weight (KG): 5000 kg

PLEASE NOTE:



1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations



2.We ship you by sea !!!



3.Door to door please leave message or whatsapp or email for price !!!



Faye(Sales Manager)

Email: [email protected]

Whatsapp/Wechat/Mobile: +86 18737172261

PLEASE NOTE:

1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations

2.We ship you by sea !!!

3.Door to door please leave message or whatsapp or email for price !!!

Faye(Sales Manager)
Email: [email protected]
Whatsapp/Wechat/Mobile: +86 18737172261

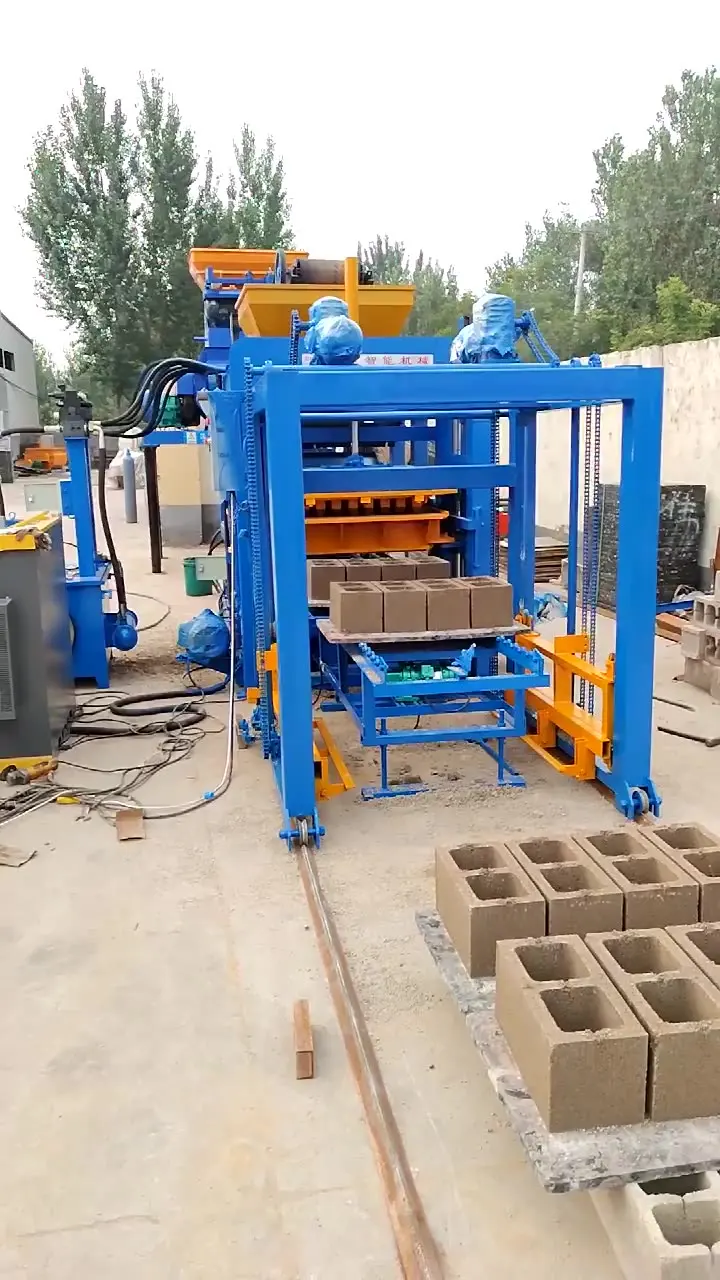

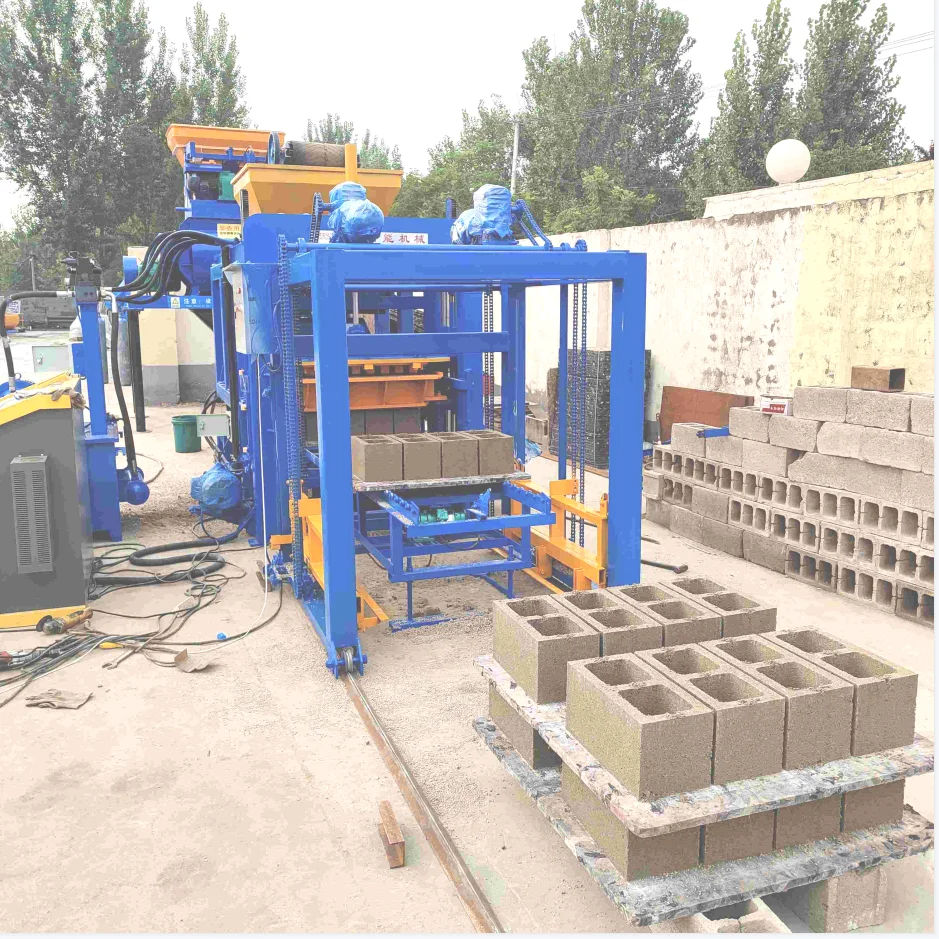

YG Factory QT4-18 Concrete Interlock CHB Block Molding Machine Cement Automatic Brick Making Machine Price For Sale

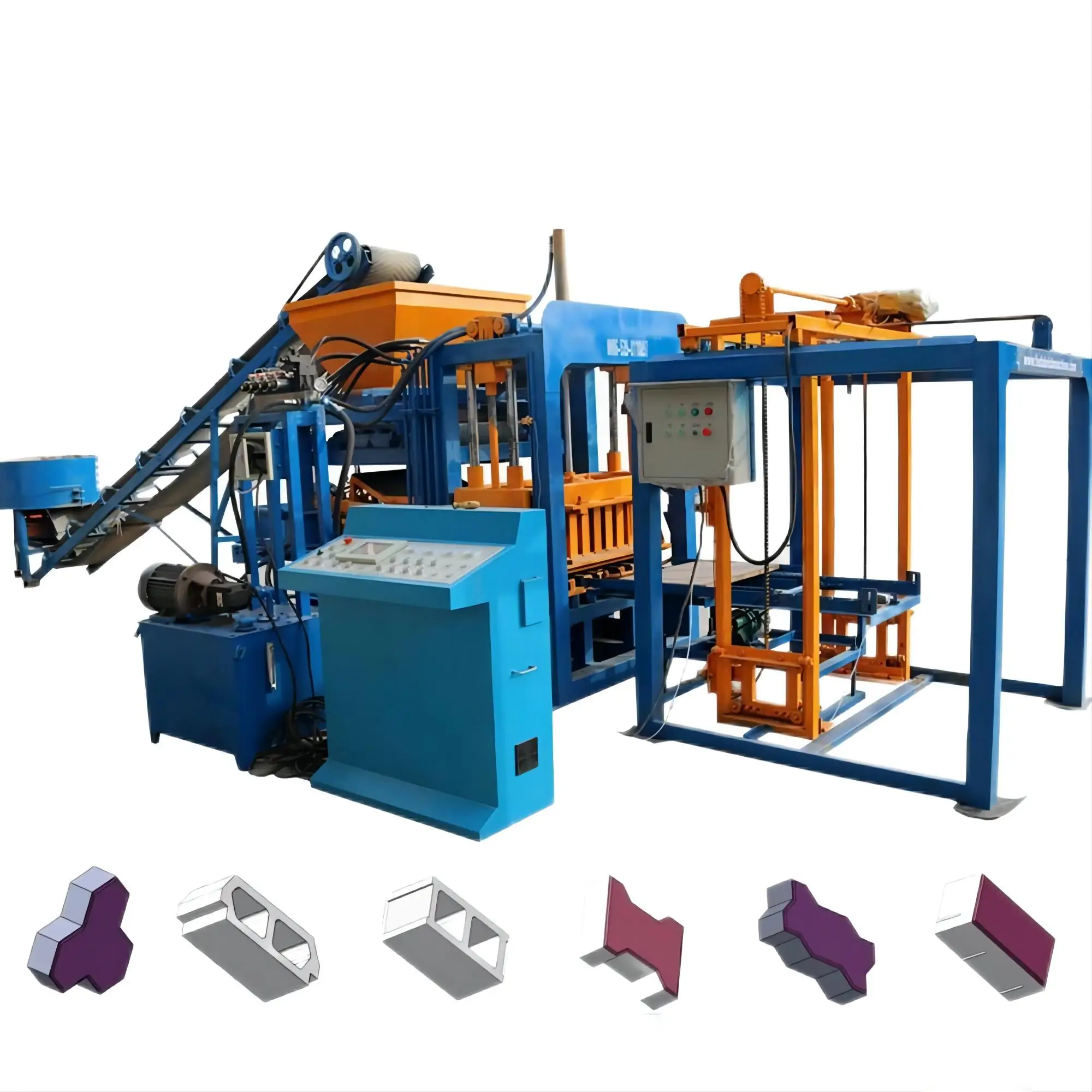

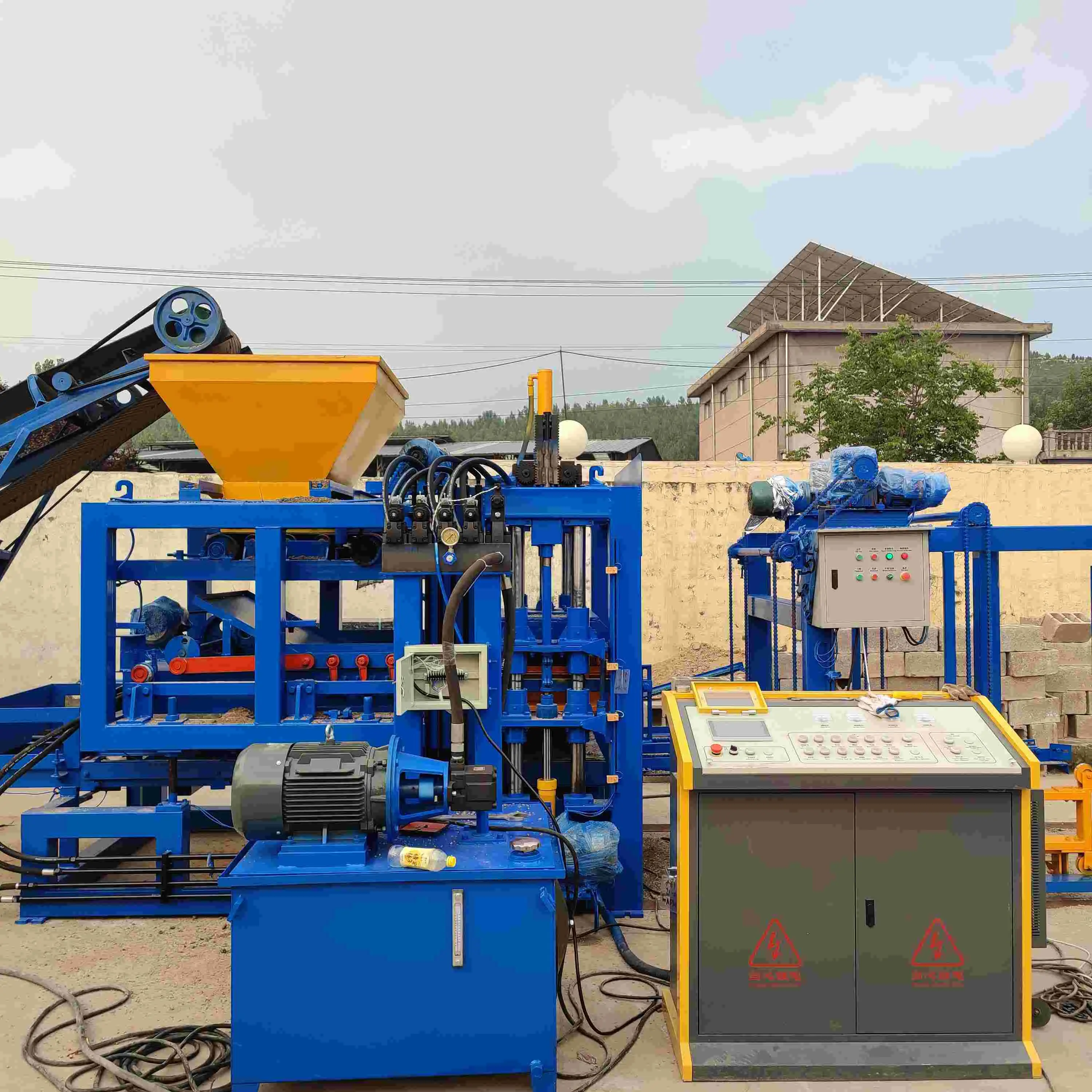

1)Introduction of the full production line

• Host machine:Block forming machine

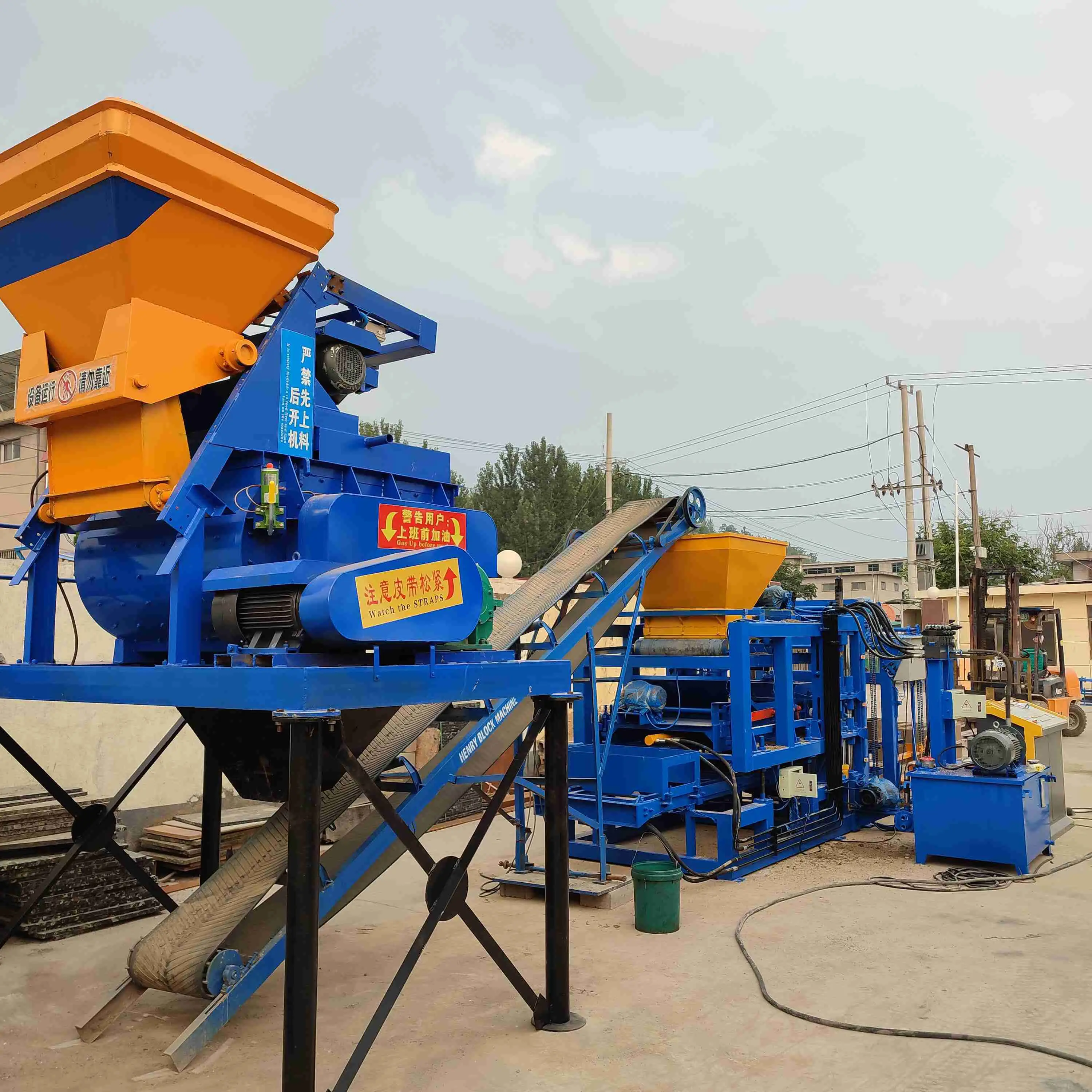

• Belt conveyor:Transfer materials from mixer to hopper
• Mixer:Mixture materials
• Controller:Automatic controller with PLC

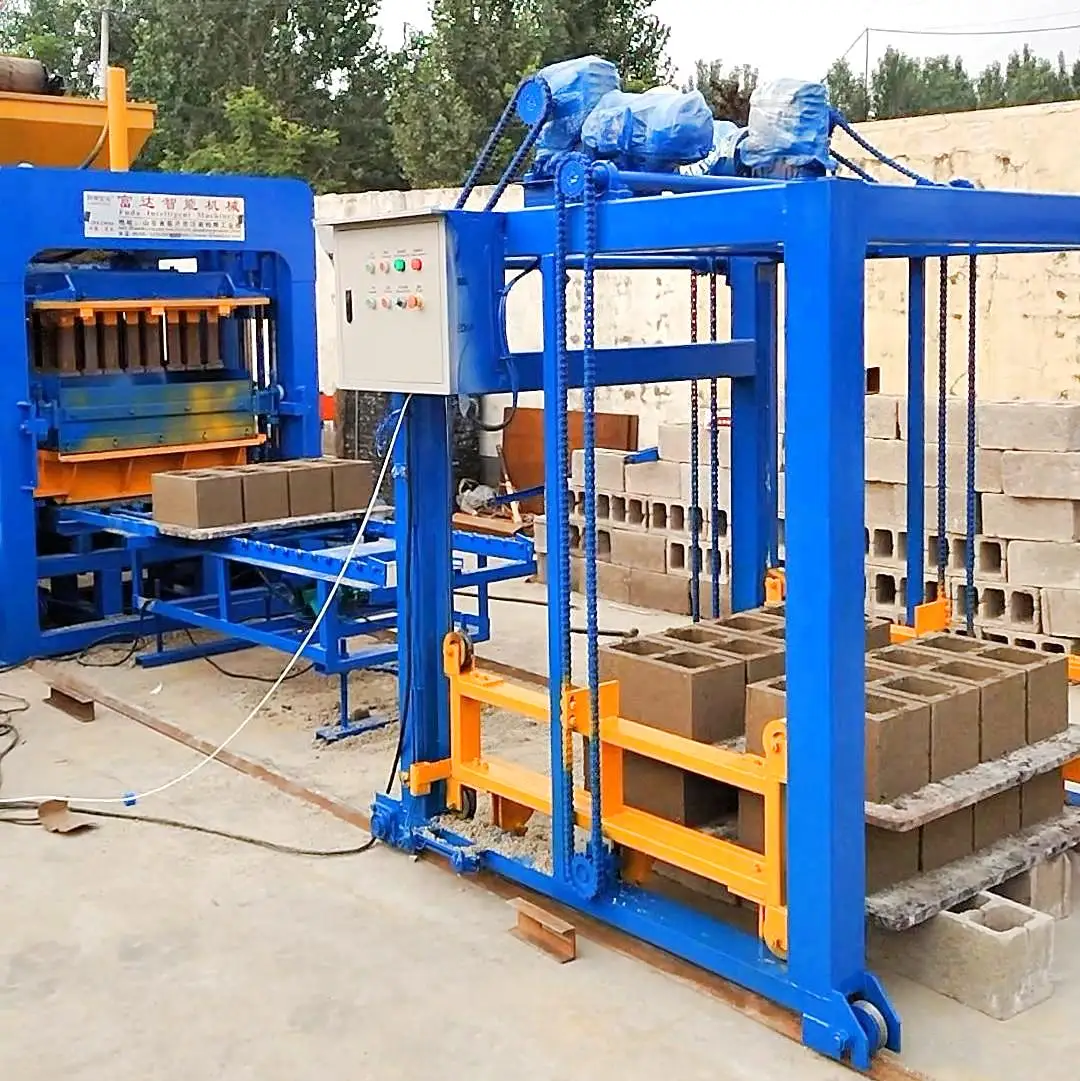

• Block transfer platfor:Transfer blocks from host machine to stacker

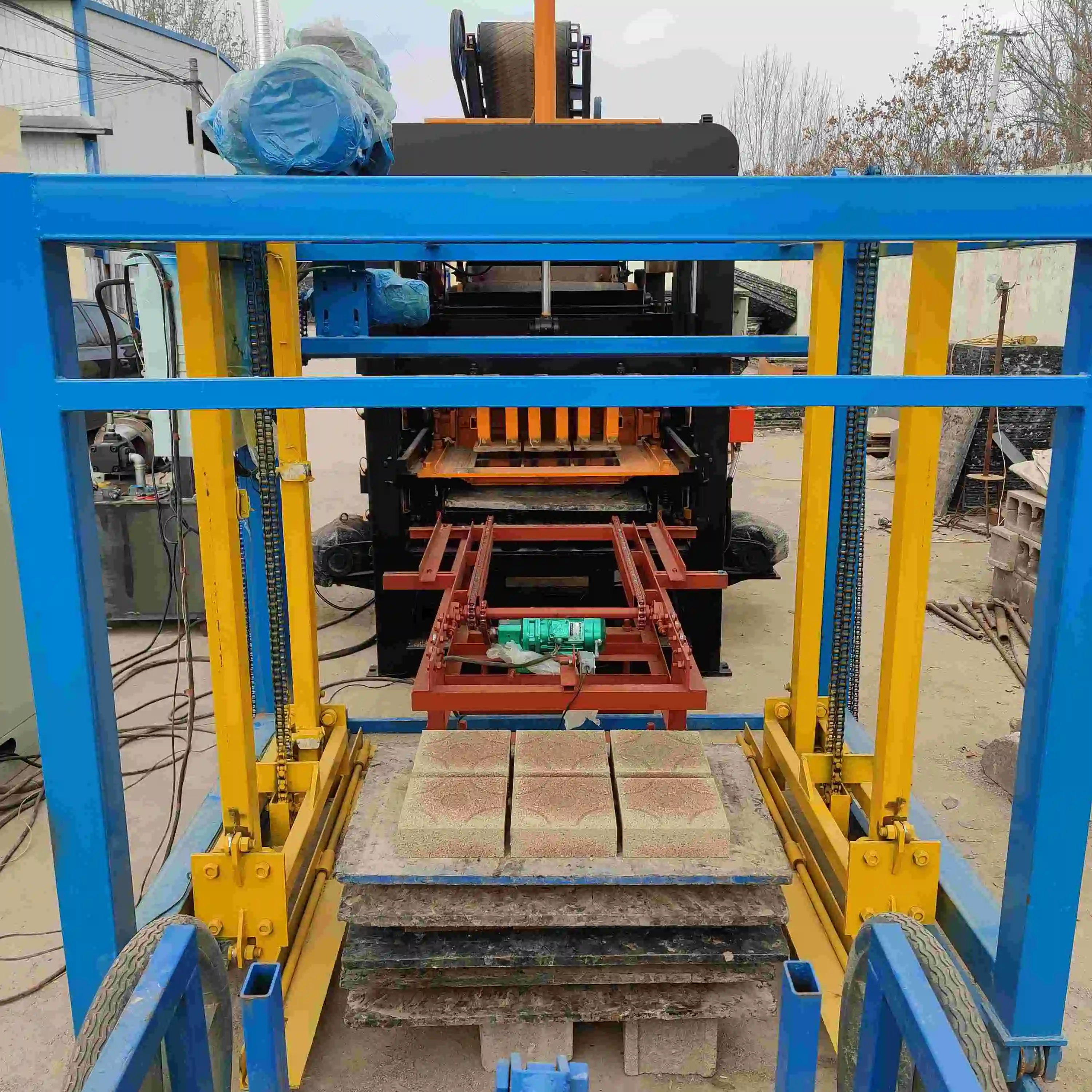

• Stacker:Used for stacking blocks
• Troller:Transport blocks to other space

2)Machine inrtoduction

• Medium size concrete block machine line
• Both hydraulic press and mold vibration press
• Multi-function,could be produce hollow block/solid brick/cabro block/paver brick and so on by changing molds
• Materials:concrete.cement.fly ash,stone,sand,stone and so on
• Full automatic with PLC controller

3)Technical of Host Machine

Item	Name	Description
1	Molding cycle	18-20s
2	Size	3740*2230*2450mm
3	Weight	3800KGS
4	Power	19.95kw
5	Hydraulic pressure	16Mpa
6	Pallet size	850*550*30mm
7	Product	Hollow/cabro/houdis/paver/cerb stone and so on
