SPECIFICATIONS

After-sales Service Provide: Engineers available to service machinery overseas

Applicable Industries: Building Material Shops

Automatic: Yes

Block Type: hollow block, solid brick, paving brick, crubstone, grass stone

Brand Name: NoEnName_Null

Brick Raw Material: Cement

Brick size: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, Other

Certification: CE

Color: Customer’s Choice

Condition: New

Core Components: PLC, Pressure vessel

Dimension(L*W*H): 9350*2320*2950mm

Hign-concerned Chemical: None

Hydraulic: yes

Key Selling Points: Easy to Operate

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Method: Hydraulic pressure

Origin: Mainland China

Pallet Size: 1020x900mm

Processing: Brick Production Line

Production Capacity (Pieces/8 hours): Other, 4480 pcs/8hours

Raw Material: sand, cement, flyash, baby stone, concrete

Type: Hollow Block Making Machine, Paving Block Making Machine

Video outgoing-inspection: Provided

Voltage: local voltage

Warranty: 1 Year

Warranty of core components: 1.5 years

Weight (KG): 12000 kg

PLEASE NOTE:



1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations



2.We ship you by sea !!!



3.Door to door please leave message or whatsapp or email for price !!!



Faye(Sales Manager)

Email: [email protected]

Whatsapp/Wechat/Mobile: +86 18737172261

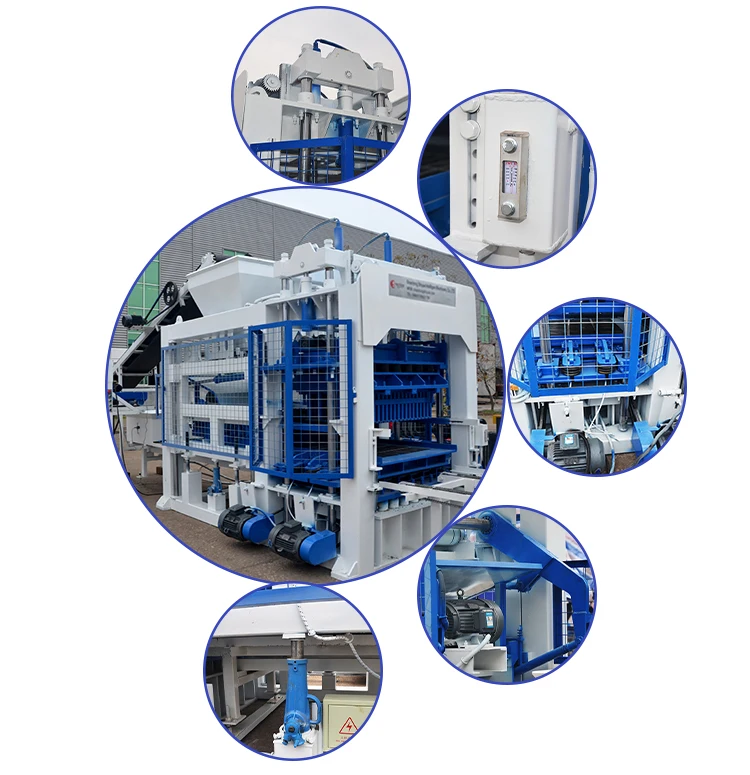

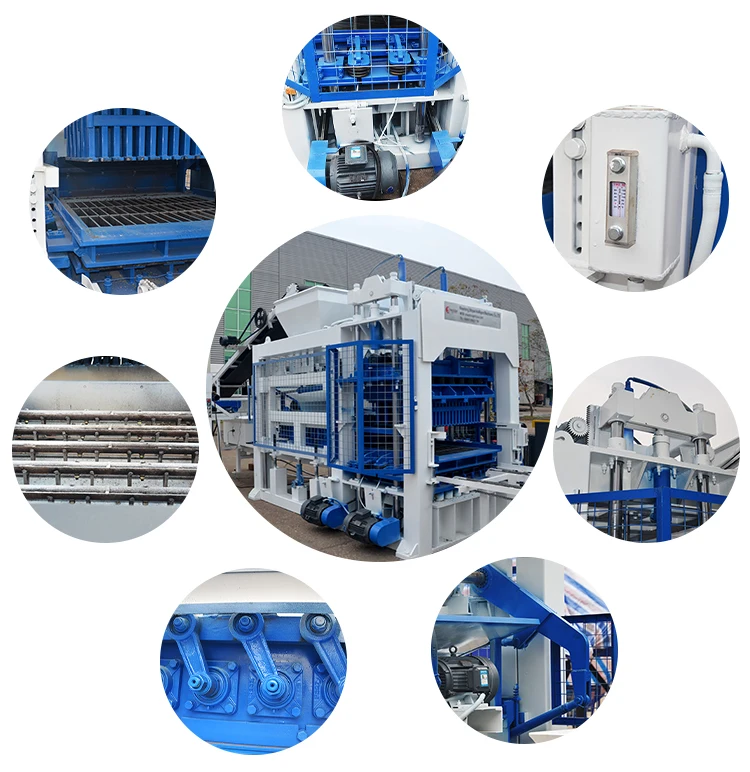

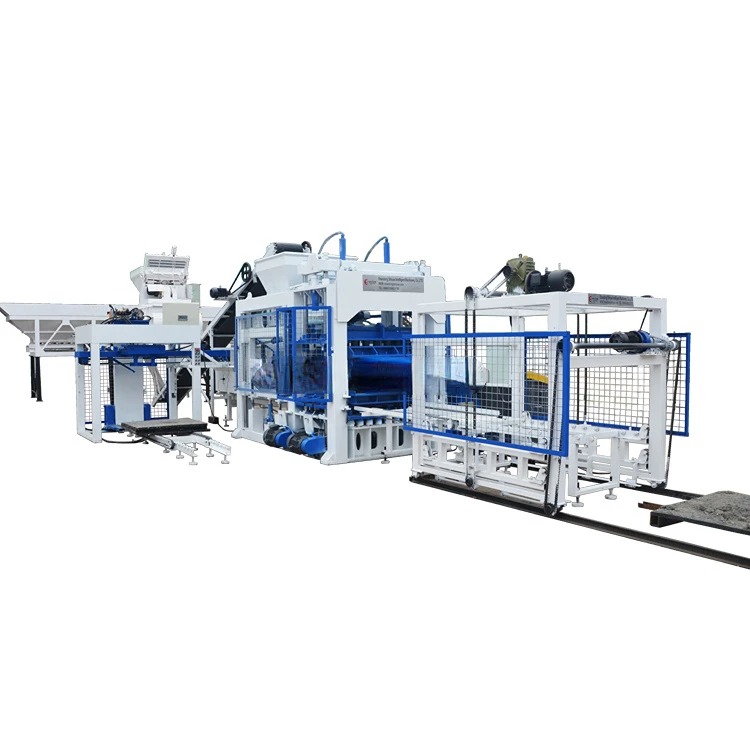

QT10-15 automatic useful ash brick making machine, it produces different kinds of blocks or bricks by changing molds. It is widely used to produce hollow blocks, solid blocks, color paving bricks, grass blocks, curbstones of various size and shape according to buyer local market.

It is conctrolled by PLC and form bricks with hydraulic pressure to guaranteen finished blocks high density and strength.

The molds adopt wire cutting and heat treatment to make sure the accuracy and toughness. Motors of this machine are all Siemensbrand, enjoy global after sales service everywhere.

Main technical parameters

Technical Parameters of QT10-15 concrete automatic brick making machines
Overall Dimension	9350*2320*2950mm
vibration frequency	0-60HZ
Main Vibration Form	Platform Vibration
moulding mode	load automatically,vibration moulding
Pallet Size	1100*900mm
Molding cycle	15-20s
Overall Power	44W
Vibration Force	100KN
Total Mass	12T
Demolding method	Hydraulic
General water consumption	12T/Day
Factory Area	1200m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw

Productivity

Size(LxWxH)	Pcs/Mould	Pcs/ Hr
400X200X200	10	1800-2100
400X100X200	19	4560-5000
225X112.5X60	27	4860-5100
200X100X60	35	6300-6500
250x250x60	12	2160-2400

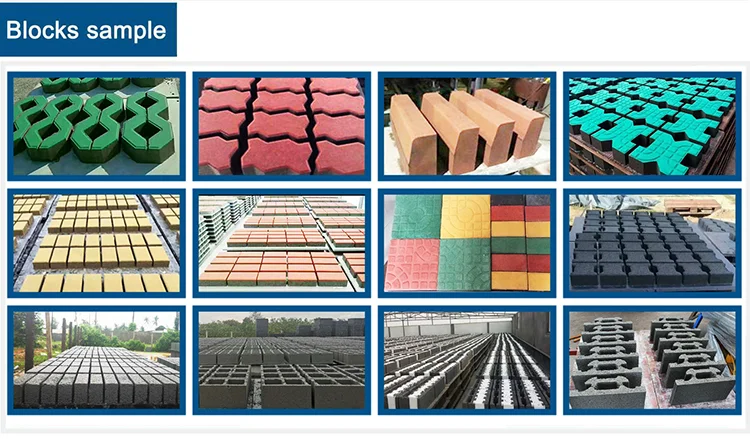

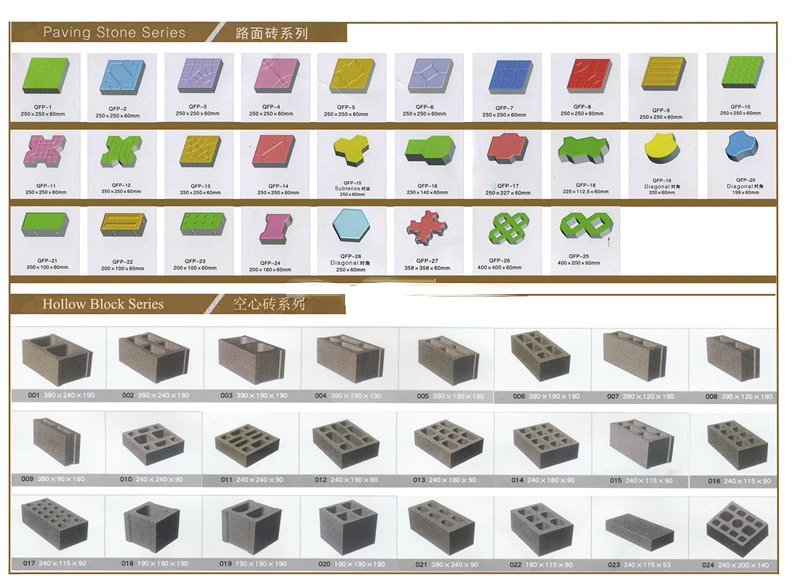

Blocks Samples

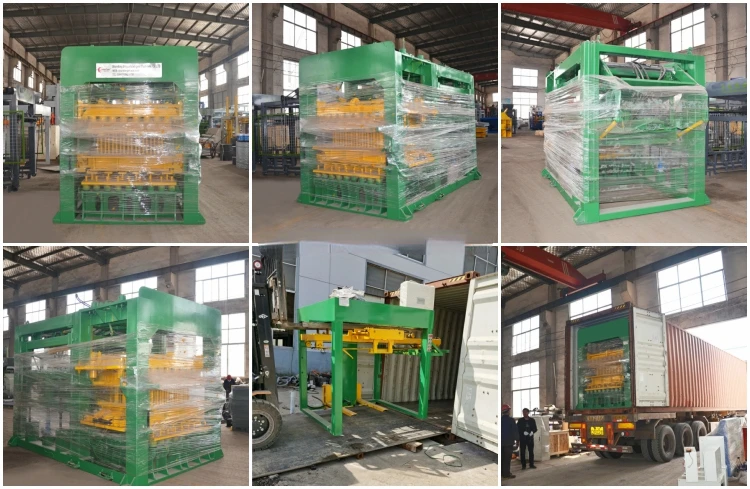

Packaging And delivery
